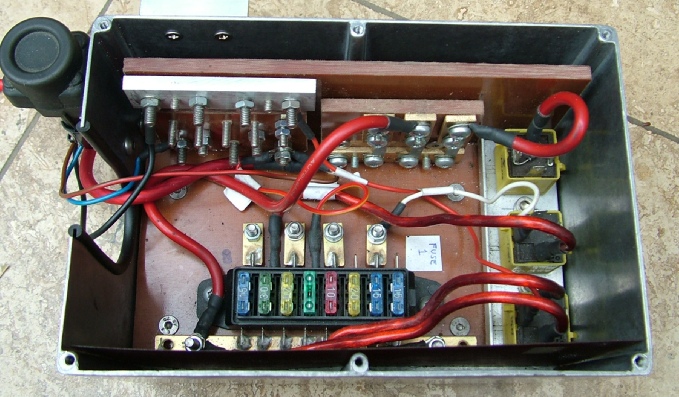

Left: power distribution unit for T-series installation

Home Julian Rogers Home T-series electrical details 3

T-series electrical details 4

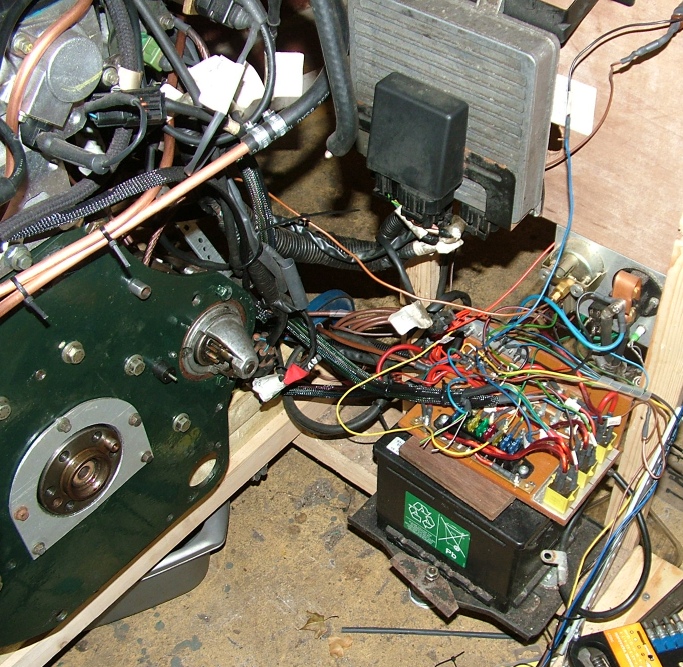

Left: unit (minus its case) temporarily wired in to test operation of the engine.

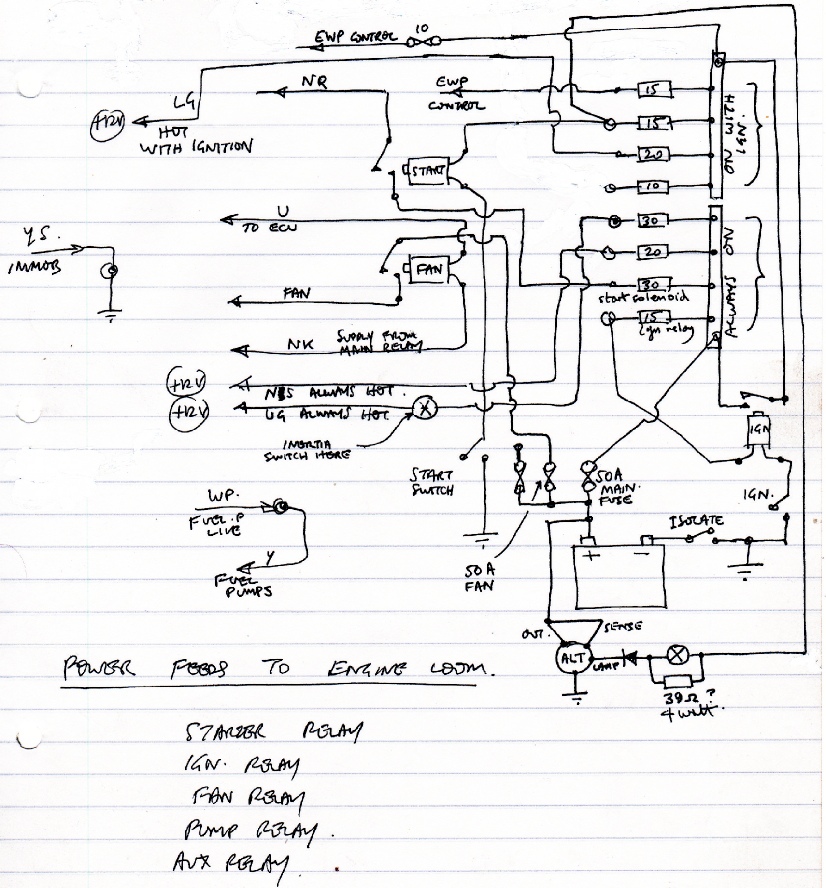

Below: circuit diagram of power distribution unit

MEMS ECU

Relay module.
